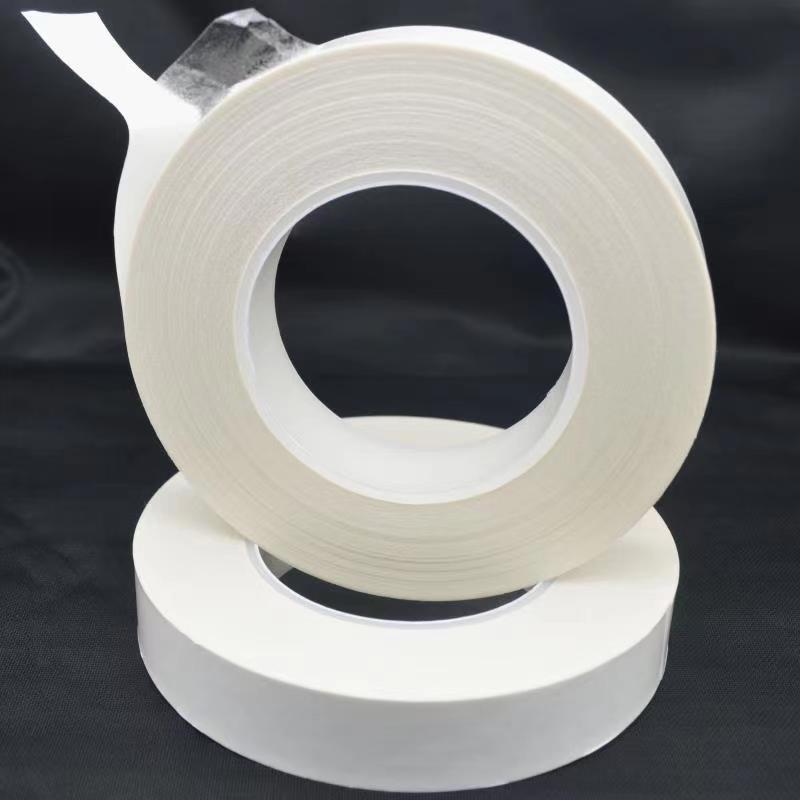

Technical Data Sheet ZC-219-5(A)、ZC-219-5(B) 、ZC-219-5(C) 產品說明：低阻抗值、耐曲性佳、具 EMI/RFI 遮蔽功能。 Description: Low impedance value and good EMI/FRI shielding effectiveness, excellent for using on curved surfaces. 適用於導電布、導電泡棉、導電棉紙、銅鋁箔貼合。 Application: Suitable for laminating conductive materials such as conductive fabrics/ foam, copper foils and aluminum foils. 有效規格/Width：1030mm ,1060mm,1070mm,1230mm,1300mm,1380mm 長度規格/Length：50M,100M,200M,300M,400M,500M 基材/Carrier：無/None 離型襯墊/Liner：白雙 PE 雙離紙/White double PE double silicon release paper 總厚度/Total thickness：0.050mm ± 0.005mm 物性Specification 測試標準/ Test Method 180o 黏著力(對 PET) 180o Peel Adhesive Onto PET to SUS#304 > 1500 > 52.91 > 14.64 PSTC-101 g/62.5px OZ/in N/62.5px 保持力 Holding Power > 72 hours (1.0kg/62.5px*62.5px) PSTC-107 80℃ 耐溫保持力 Holding power for Temp. > 48 hours (0.5kg/62.5px*62.5px) PSTC-107 阻抗值(對銅箔) Volume resistivity < 0.01 Ω ASTM D257 耐曲面 Flexing endurance test > 100 hours 浙岑檢驗規範 Zhecen spec 備註/Remark (1) 試驗環境為溫度23±5℃及濕度55±10%RH。Test environment: Lab temperature 23 ± 5℃ and humidity 55 ± 10% RH. (2) 建議操作環境為 10℃~35℃。Recommend operating environment is 10 ℃ ~ 35 ℃. (3) 勿置於高溫、潮濕及日照處。Preserve in constant temperature and avoid being exposed to high humidity and sunlight. (4) 適當環境下，保存期限一年。Shelf life: 1 year under normal condition. (5) 使用前請先測試，以免被貼物表面不穩定物質影響膠性。 Test before using to avoid the glue being affected from the unstable substance. (6) 以上為浙岑膠帶依產品特性測試之資料，僅供參考，實際情況須依客戶測試後效果為準。 Above data is based on Zhecen lab test results and for reference only. The actual reading is subject to users' application. (7) 測試前轉貼導電布後，請先靜置 24 小時以上，確保導電布與膠面完全貼合。 After applying the tape on conductive materials, allow at least 24 hours dwelling time to ensure complete lamination of the conductive materials and adhesives. (8) 耐曲面檢測，依王佳發行之導電膠帶張口實驗標準書。 Tests on curved surfaces are based on Seal King’s standard testing procedure
